Basic Information of Product
Table 1 Basic Information of Product
|
Product Name |
LiFePO4 Battery Pack 16S280AH |
|
Configuration |
1P16S |
|
Product Model No. |
SUN-16S280AH-A |
|
Thermal Runaway Management (TRM) |
Air-cooling |
Basic Description of Product

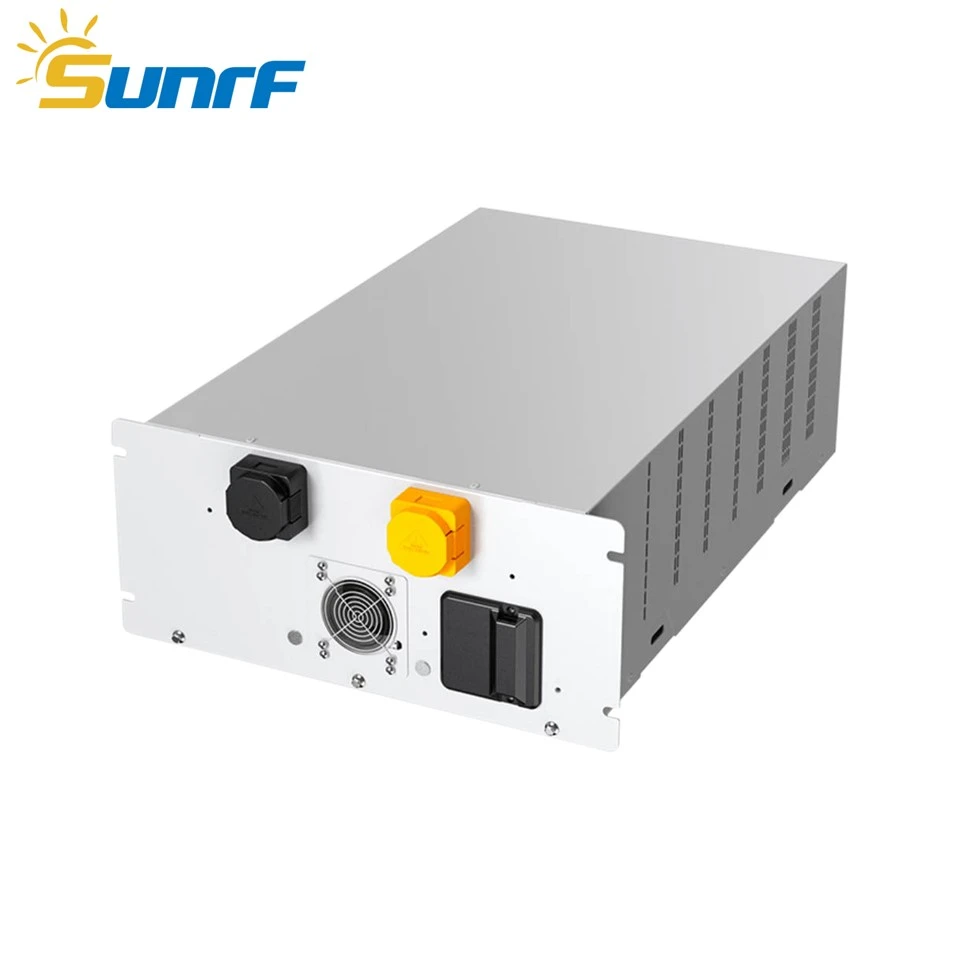

16S280 Air-cooling Battery Pack is composed of lower box, top cover, battery modules, a BMU, some wires, copper bars and so on.
Structure of Battery Pack
Product Configuration and Technical Data
Table 2 Basic Parameters of Product
|
No. |
Item |
Parameters |
Notes |
|
1 |
Rated Voltage |
51.2VDC |
Rated voltage of single battery cell is 3.2V |
|
2 |
Rated Capacity |
280Ah |
@0.5C, 25℃ |
|
3 |
Rated Energy |
14.336kWh |
@0.5C, 25℃ |
|
4 |
Working Voltage Range |
40V-58.4VDC |
Working voltage range of single battery cell is 2.5V-3.65V |
|
5 |
Configuration |
1P16S |
|
|
6 |
Rated Charging/Discharging Current |
140A |
|
|
7 |
Rated Charging/Discharging Power |
0.5P |
|
|
8 |
Working Environment Humidity |
5%-95% RH |
|
|
9 |
Working Environment Temperature |
Charging: 0-55℃ Discharging: -25-55℃ |
|
|
10 |
Storage Temperature |
-30-60℃ |
Suggest to store this product at 10-35℃ |
|
11 |
Applied Altitude |
≤2000m |
|
|
12 |
Weight |
~110±5kg |
|
|
13 |
Dimension (L*W*H) |
729±2*526±2*230±2mm |
Exclude the sizes of connectors on panel |
