Introduction

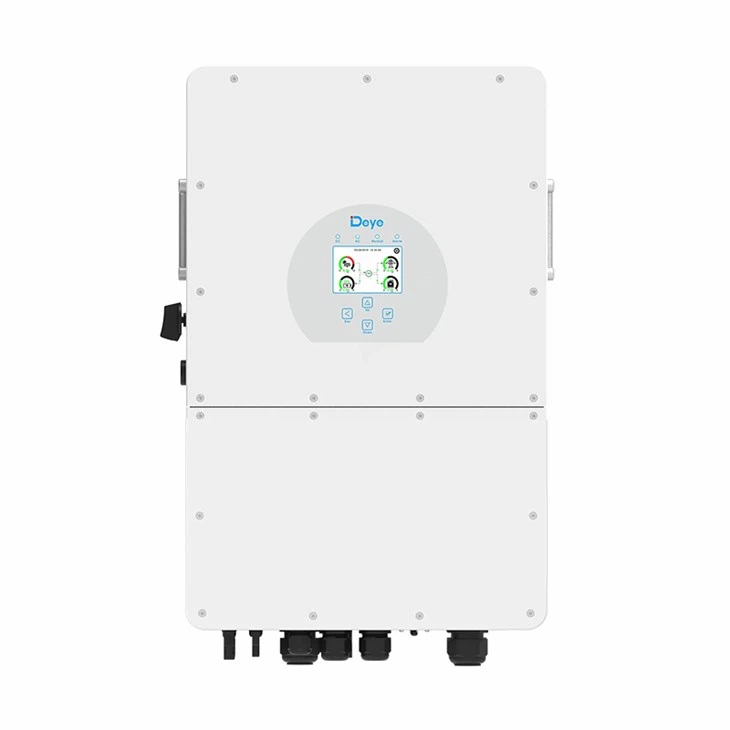

Product name:5-25kw three phase hybrid inverter
100% unbalanced output, each phase
AC couple to retroft existing solar system
Max. 10 pcs parallel for on-grid and off-gridoperation, Support multiple batteries parallel
Max.charging/discharging current of 50A
High voltage battery, higher effciency
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Parameter
| Model | SUN-5K-SG01 | SUN-6K-SG01 | SUN-8K-SG01 | SUN-10K-SG01 | SUN12K-SG01 | SUN15K-SG01 | SUN-20K-SG01 | SUN-25K-SG01 |
| Battery Input Data | ||||||||
| BatteryType | Lithium-ion | |||||||
| Battery Voltage Range (V) | 160-700 | |||||||
| Max. Charging Current (A) | 30 | 37 | 50 | |||||
| Max. Discharging Current (A) | 30 | 37 | 50 | |||||
| Number of Battery Input | 1 | |||||||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||||||
| PV String Input Data | ||||||||
| Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | 19500 | 26000 | 32500 |
| Max. DC Input Voltage (V) | 1000 | |||||||
| Start-up Voltage (V) | 180 | |||||||
| MPPT Range (V) | 150-850 | |||||||
| Full Load DC Voltage Range(M) | 195-850 | 195-850 | 260-850 | 325-850 | 340-850 | 420-850 | 500-850 | 625-850 |
| Rated DC Input Voltage (V) | 600 | |||||||
| PV Input Current(A) | 20+20 | 26+20 | 26+26 | |||||
| Max. PV Isc(A) | 30+30 | 39+30 | 39+39 | |||||
| No.of MPP Trackers | 2 | |||||||
| No.of Strings per MPP Tracker | 1+1 | 2+1 | 2+2 | |||||
| AC Output Data | ||||||||
| Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Max. AC Output Active Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 27500 |
| AC Output Rated Current (A) | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29 | 37.9/36.3 |
| Max.AC Output Current(A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/39.9 |
| Max Three phase Unbalanced Output Current(A) | 13 | 13 | 18 | 22 | 25 | 30 | 35 | 41.7 |
| Max. Continuous AC Passthrough (A) | 40 | 80 | ||||||
| Peak Power (off grid) | 1.5 time of rated power, 10 S | |||||||
| Generator Input/Smart Load /AC Couple Current (A) |
7.6/40/7.6 | 9.1/40/9.1 | 12.2/40/12.2 | 15.2/40/15.2 | 18.2/80/18.2 | 22.8/80/22.8 | 30.4/80/30.4 | 37.9/80/37.9 |
| Power Factor | 0.8 leading to 0.8 lagging | |||||||
| Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380,230/400Vac | |||||||
| Grid Type | Three Phase | |||||||
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | |||||||
| DC Current Injection | <0.5% In | |||||||
| Effciency | ||||||||
| Max. Effciency | 97.60% | |||||||
| Euro Efhciency | 97.00% | |||||||
| MPPT Efhciency | 99.90% | |||||||
| Protection | ||||||||
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection,nsulation Resistor Detection, Residual Current Monitoring Wnit, Qutput Over Current Protection.Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCl optional) | |||||||
| Over Voltage Category | DC Type ll/AC Type lll | |||||||
| General Data | ||||||||
| Operating Temperature Range (°C) | -40 to +60°C,>45°C Derating | |||||||
| Cooling | Free Cooling | Smart Cooling | ||||||
| Noise(dB) | ≤55 dB | |||||||
| Communication with BMS | CAN | |||||||
| Weight(kg) | 30.5 | |||||||
| Cabinet Size (WxHxD mm) | 408x638x237(Excluding Connectors and Brackets) | |||||||
| Protection Degree | IP65 | |||||||
| Installation Style | Wall-mounted | |||||||
| Warranty | 5Years | |||||||
